Product Info


AMC-750Component list:

ITEM NO.

DESCRIPTION

QUANTITY
AMB-16
 Main unit(include I/O)

1
AIO-16
I/O

1
AAD-42
 Pressure & Speed

1
ATR-10
 Temperature control

1
GM-500
 LCD operation panel

1
T -50C
 Power supply

1
S-250-24
 Power supply

1
S-100-48
 Power supply

1
CAB-9
 9P cab line

2
16P-LINE
 16P connector

3
4P-LINE
 4P 延長線

1
CL-9544
Relay Board

1

　

AMC-750 Specification Table:

一. General specification:

Power source AC 220V (±10 % )
Operation temperature 0°∼ 50°C
Storage temperature -10°∼ 70°C
Humidity 45% ∼ 85%
Variable resistance Normal (180°* 1), Accurate (180°* 8)
Noise resistance 1000V， 1us
Insulating resistance AC 1500V
Insulation resistance 20 MΩ
Dimension REF. single unit
Weight REF. single unit

　

二. Functional specification:

A) .Main unit

Program sysytem Stored program system (EPROM)
Scan time 6 ms
Number of operation squence Controlled by program.
Memory capacity of program 64 K BYTE (MAX)
Programing language Assemble language
Number of programing step Unlimited
Memory device RAM 32K BYTE(MAX)
Memory of mold data 60 mold data
Internal Relays Controlled by program,unlimited
Internal timers Controlled by program,unlimited
Extenal timers Controlled by program
Entenal counter Controlled by program
Internal counter Controlled by program,unlimited
CPU power supply CPU 5V WATCH DOG .

　

B) 1. Operation penal (GM-750)

　

B) 2. I/O unit (AMB-16)

Input points 16
Input voltage 24 VDC
Input current Each point 10 mA DC limited
Output points 16 (14 Transistors， 2 Relays )
Output voltage 28 VDC
Output current Each point 2 A (MAX.)
Operating voltage 24 ∼ 30 VDC
LED indicaters Input LED : 16 & Output LED : 16
Connections 16 PIN connectors
Dimension 178 * 120 * 40
Weight 900 g



B) 2-1. I/O unit (AIO-16)

Input points 32 + 16 (option)
Input voltage 24 VDC
Input current Each point 10 mA DC limited
Output points 16 (14 Transistors， 2 Relays )
Output voltage 28 VDC
Output current Each point 2 A (MAX.)
Operating voltage 24 ∼ 30 VDC
LED indicaters Input LED : 16 & Output LED : 16
Connections 16 PIN connectors
Dimension 178 * 120 * 40
Weight 800 g

　

B) 3. D/A output (AAD-42)

Output channels 2 ch
Pressure output 0 ∼ 10 VDC ，(EFBG 10Ω)
Speed output 0 ∼ 30 VDC ，(EFBG 40Ω)
Output ratio Pressure 1 : 1 、Speed 100% output
Frequency of output 200 Hz (Chageable by EFBG specification)
Data setting points Controlled by program,unlimited
Connections 16 PIN connectors
Dimension 178 * 120 * 40
Weight 750 g



Input channels 4 ch (protential meter & pressure sensor)
Input voltages 0 ∼ 10 VDC
Resolution 12 bit 1/4096
Data setting points Controlled by program,unlimited
Connections 16 PIN connectors

　

B) 5. Temperature controller unit (ATR-10)

Number of channels 7 CH
Oil temperature display 1 CH
Input CA (K) type
Range 0 ∼ 399°C
Control PID + Auto tuning
Alarm Over/Lower oil temp.、senser open
Output 8 ch (zone) to SSR + 2 ch ratio output
LED indicaters Output LED 10ch + RUN indicater 1ch
Output current Each point 40 mA(MAX.)
Connections 16 PIN connectors
Dimension 178 * 120 * 40
Weight 750 g

　

4. T -50C Power Supply :

Input Voltage
AC 85V ∼ 132V, AC 170V ∼ 264V by switch
Output Voltage
DC 5V 4A , 15V 1A , -15V 1A
Weight
540g
Dimension
 159 * 97 * 38mm

　

5. S-250-24 Power Supply :

Input Voltage AC 90V ∼ 132V, AC 176V ∼ 264V by switch
Output Voltage DC 24V, 10A
Dimension 1.3Kg
Weight 150 * 140 * 86mm

　

6. S-100-48 Power Supply :

Input voltage AC 85V ∼ 132V, AC 170V ∼ 264V by switch
Output voltage DC 48V, 2A
Dimension 620g
Weight 199 * 98 * 38mm

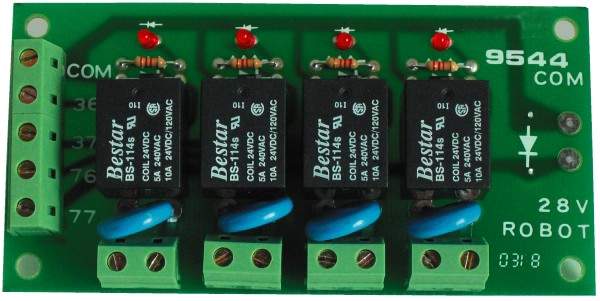

7. CL-9544 Relay Board ：

Input voltage DC 28V
Output A contact , 4 point
LED indicators 4
Dimension 120 * 60 * 20mm
